General Description
Our motor grader is designed for road construction, road maintenance, and land leveling. Featuring advanced technology and highly durable components, it delivers superior performance under all working conditions. Ideal for road infrastructure, mining, and agricultural projects.
Technical Specifications
Engine: High-power diesel engine with low fuel consumption and low emissions
Hydraulic System: Imported hydraulic system ensuring smooth, precise operation
Blade: High-strength steel blade, adjustable to multiple angles

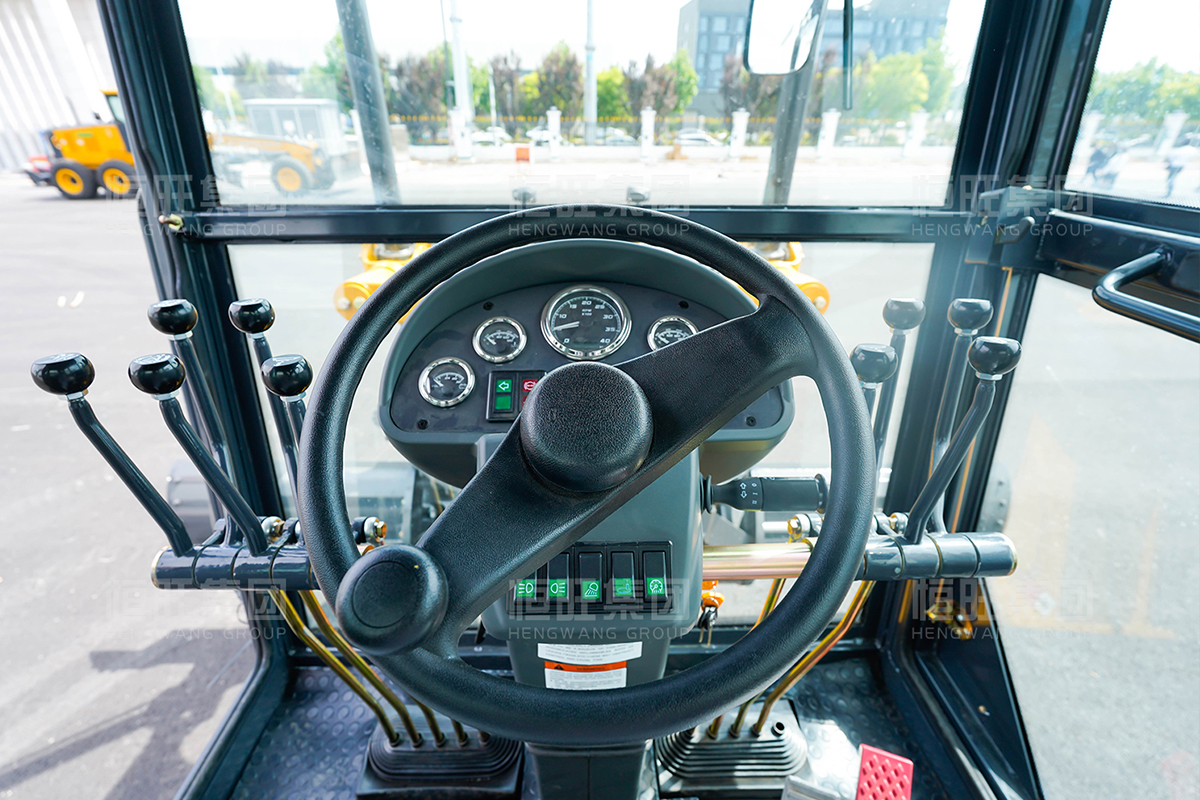

Cab: Enclosed cab with air conditioning; comfortable and safe for the operator
Transmission: Multi-speed automatic transmission, adaptable to various terrains
| HW22G | ||
| Dimensional specifications | Overall length: with front and rear counterweights | 9315mm |
| Overall length: with front blade | 10310mm | |
| Overall length: with rear ripper | 9920mm | |
| Overall length: with front blade and rear ripper | 10910mm | |
| Front-to-rear wheelbase | 6530mm | |
| Rear axle wheelbase | 1538mm | |
| Height | 3400mm | |
| Wheel track | 2155mm | |
| Width | 2620mm | |
| Minimum ground clearance | 430mm | |
| System Configuration | Operating configuration | 17000kg |
| Engine model | 康明斯6CTAA8.3-C215 | |
| Number of cylinders | 6 | |
| Type | 4冲程，直喷，水冷 | |
| Bore x Stroke (mm) | 114×135mm | |
| Displacement (L) | 8.3L | |
| Rated power/speed | 160kW/2200rpm | |
| Maximum tractive force (kN) | 90 | |
| Maximum torque | 980N.m/1500rpm | |
