Gearbox model:6-speed
Power(kw hp):95KW(130hp)
1. Standard environmental protection national 5 engine, intercooled supercharged, automatically air-cut brake, high and low speed driving.
2. Hydraulic system of the whole vehicle is newly designed, matched with pressure and flow compensation system, load sensing hydraulic control system, easy to operate, high efficiency, smooth movement compound performance, stable and reliable quality, flexible and comfortable operation.
3. The multi-way valve adopts the Lujiate large-flow double valve, double-in and double-out, double oil circuit, the hoisting system is faster and more powerful.
4. Large-diameter four-way central revolving body, equipped with a revolving brake valve to prevent slippage, with reliable buffer self-locking function.
5. The slewing center is equipped with a touch-type electric disc, which can rotate 360 degrees infinitely.
6. Boom telescopic limit marking and automatic stop report, limit switch three insurance.

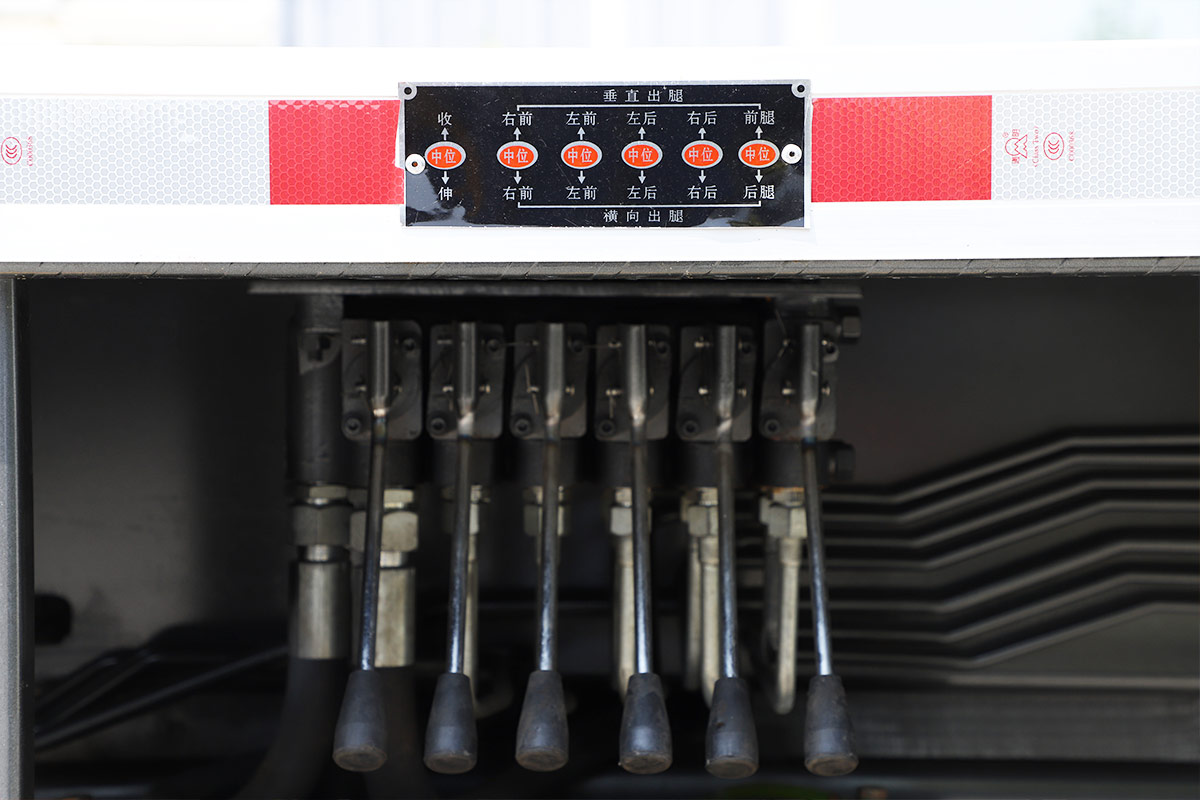

7. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance.
8. Double hooks and double winches to improve work efficiency. The winch adopts high-strength multi-strand anti-rotation phosphor-plated steel wire rope, which has long life, high strength and more stable operation.

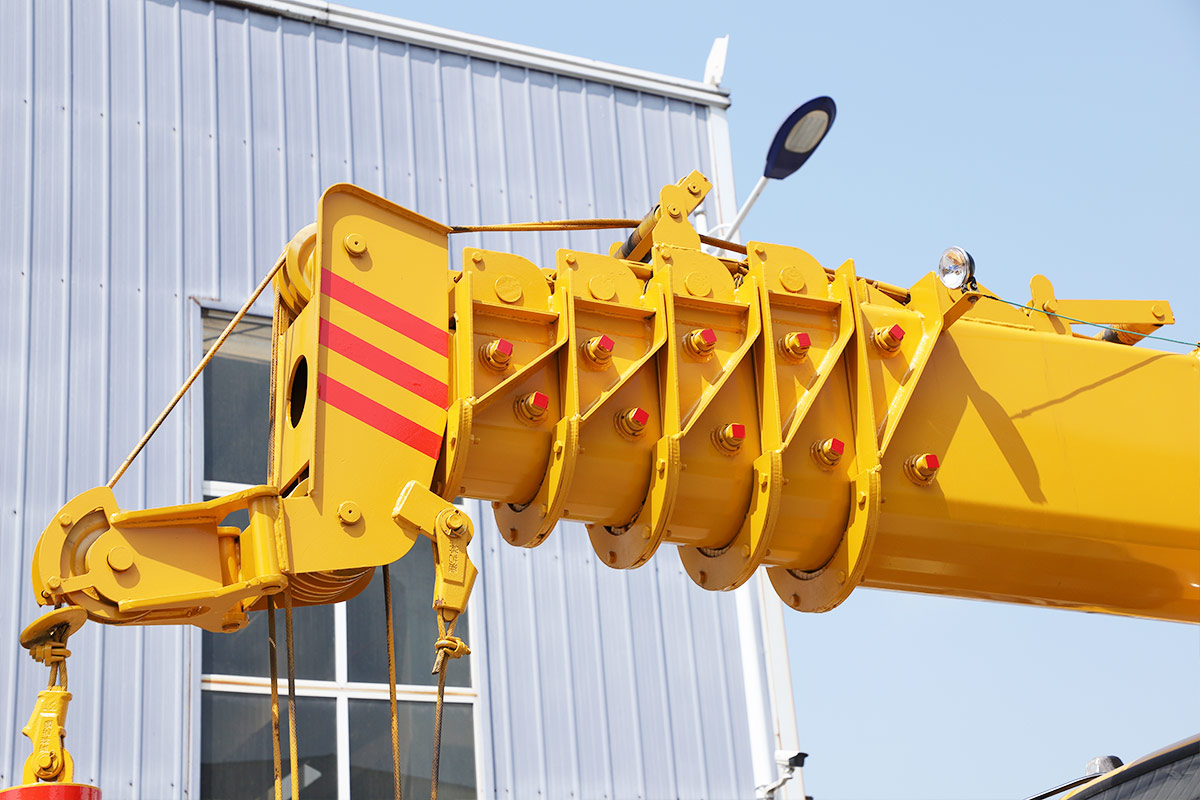

9. U-shaped section of the arm body, anti-twist design, more uniform force, better telescopic guidance, more stable telescopic
Model | HWQY12T |
Chassis models | DONGFENG |
Weight | 13000kg/15800kG |
Overall Dimensions | 10.2m*2.35m*3.4m |
Wheelbase | 3800mm |
Max. loading capacity | 12000kg |
Max. lifting height | 30m、35m |
Engine model | 4105 turbocharged |
Gearbox model | 6-speed |
Power(kw hp) | 95KW(130hp) |
Emission Standards | China Ⅲ |
Braking System | Air brake |
Steering machanism | Hydraulic Power Steering |
Boom section number | 7m X 5 section rope inside 7m X 6 section rope outside |
Main hoisting mechanism | 12T |
Auxiliary hoisting mechanism | 8T/12T |
slewing mechanism | Planetary reducer |
Outrigger | 5 full hydraulic outriggers (double section) |
Outrigger span(mm) | 6250mm |
5800mm | |
Protective device | two way hydraulic control |
Number of work lights | 2 |
Hydraulic pump | double pump 50/40 |
Oil and electricity dual use | 15KW IP6pole motor 40/32 |
Tire | 825-20 |
