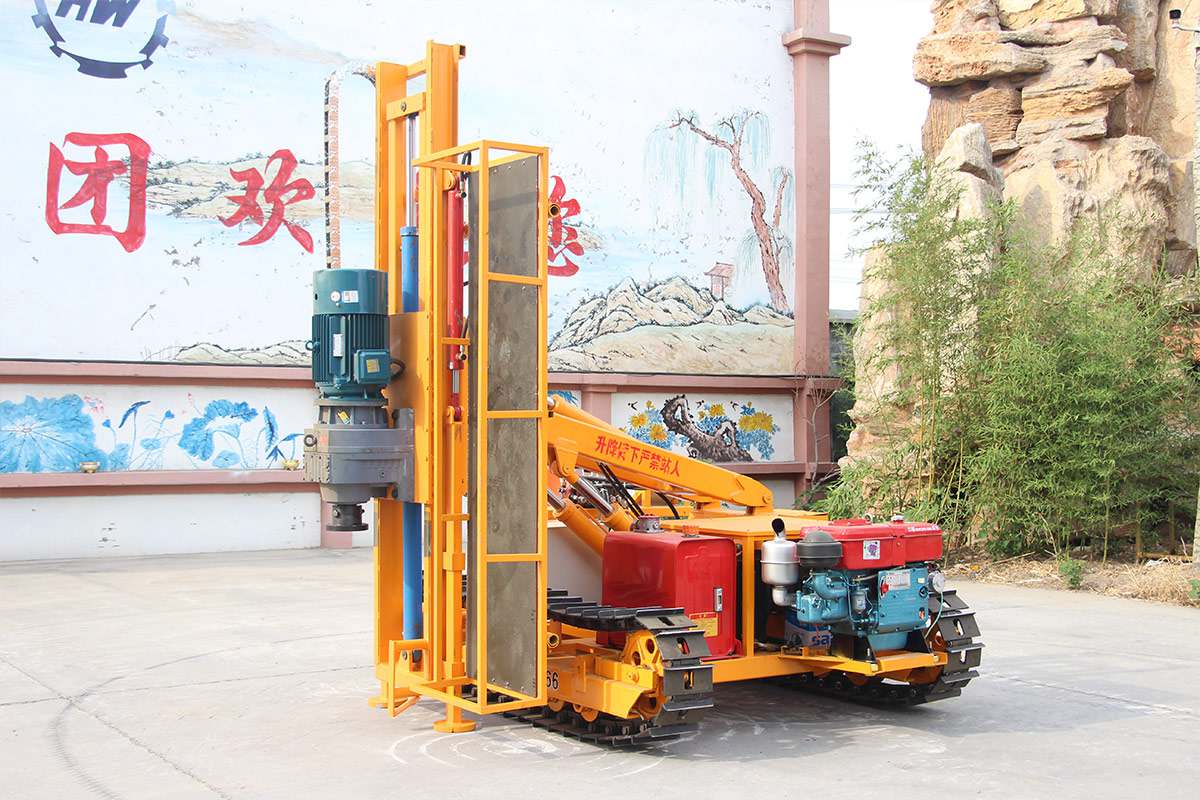

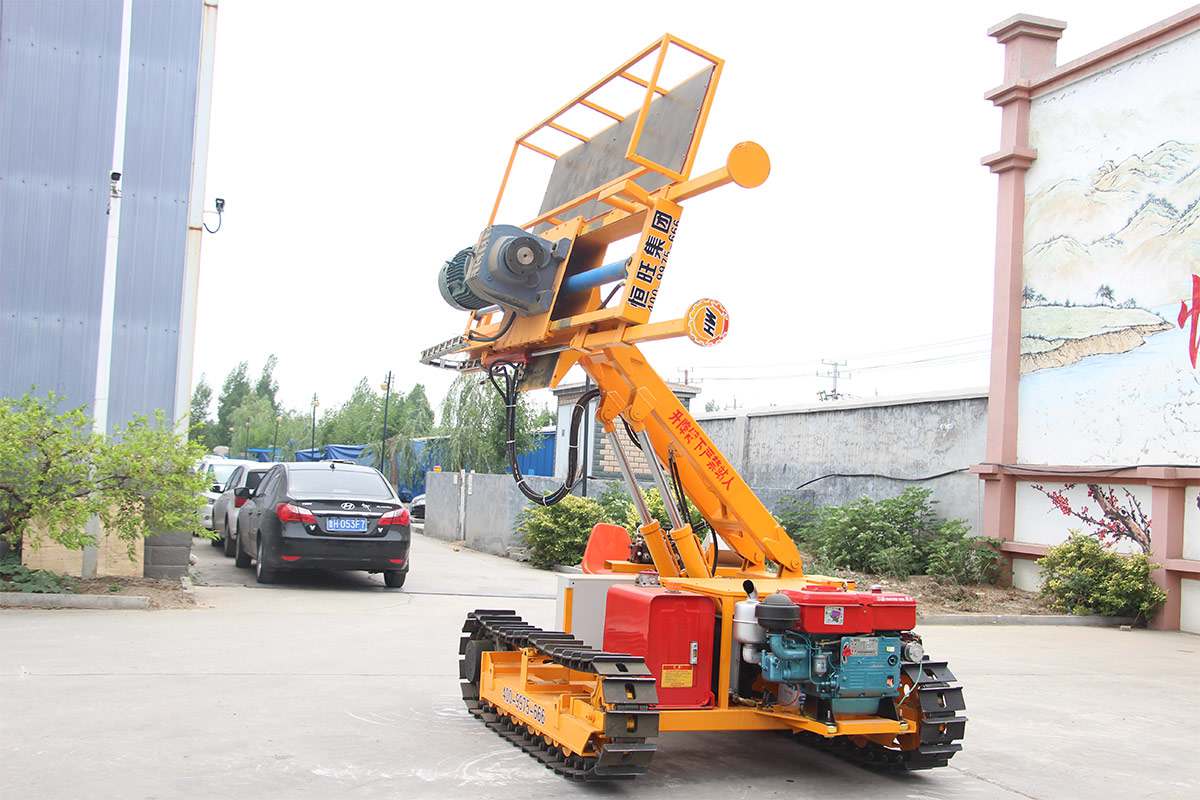

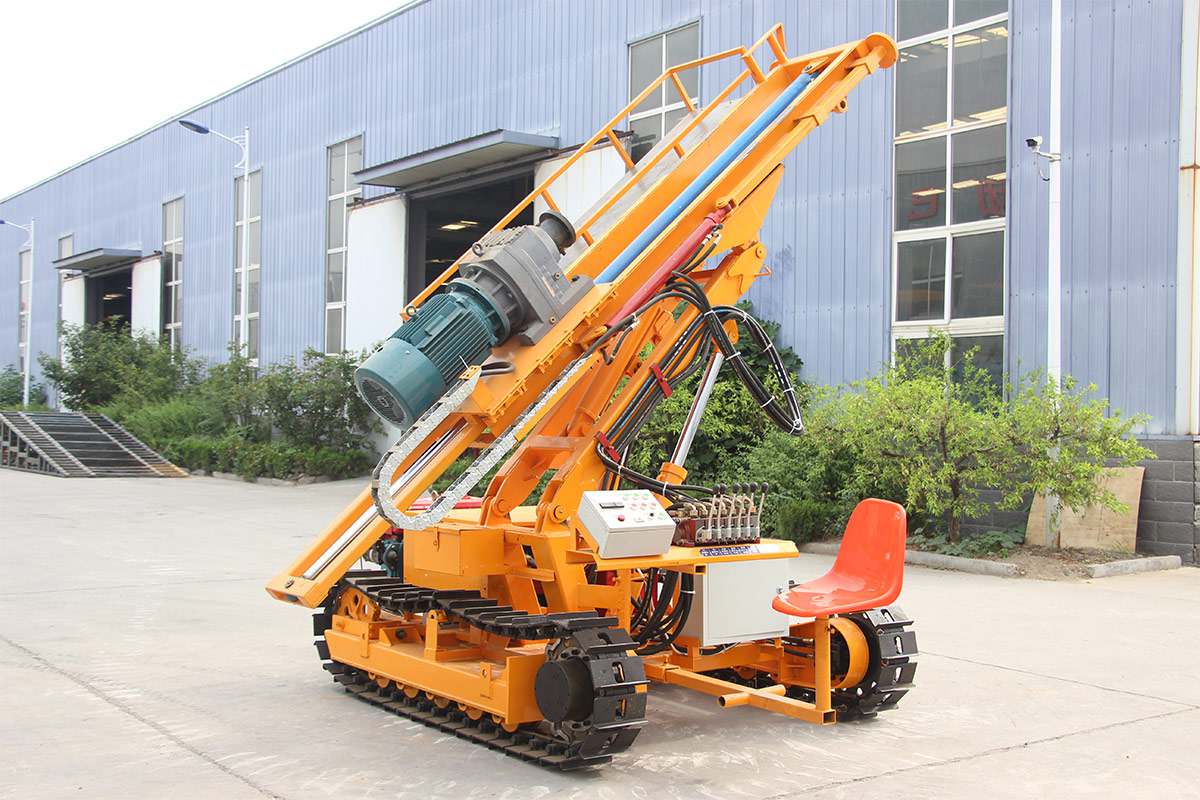

The anchoring rig is primarily employed for landslide and hazardous rock mass anchoring projects, aimed at preventing and controlling various geological disasters in hydropower stations, railways, and highway slopes. It is particularly well-suited for high slope rock mass anchoring projects. Additionally, it is suitable for urban deep foundation pit support, anti-floating bolt and foundation grouting reinforcement engineering holes, blasting holes for blasting engineering, high-pressure jetting piles, tunnel pipe shed support holes, and other applications.
Quality Certification
| maximum vertical height | 3.5m |

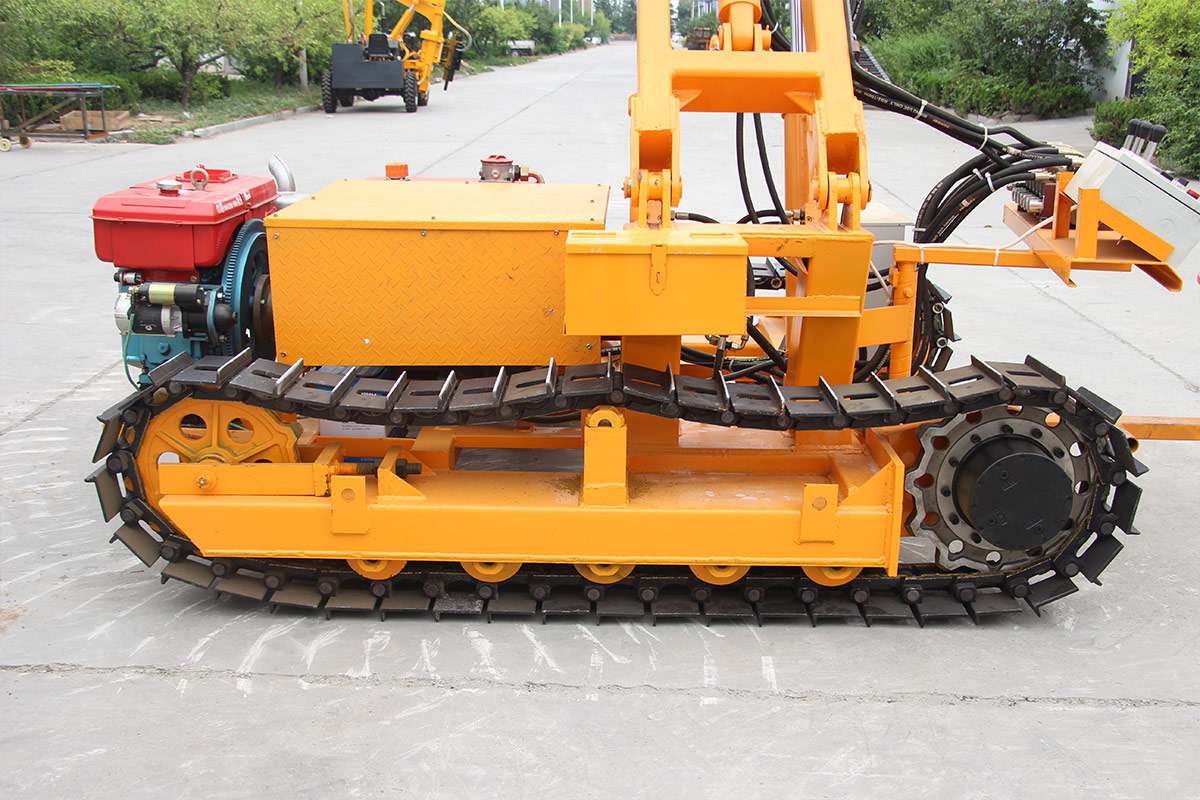

| Overall dimensions of crawler chassis | 2500*2200 |
| Track shoe width | 270 |
| engine model | changfa |
| Engine maximum power/speed | 22 HP |
| electric motor | Travel motor 15kw |
| Lower slewing bearing | fixed |
| Upper slewing bearing | 180 degree rotation |
| Hydraulic oil pump | 40 |
| Big frame | / |
| Hydraulic legs | / |
| support arm | Single section (both arms) |

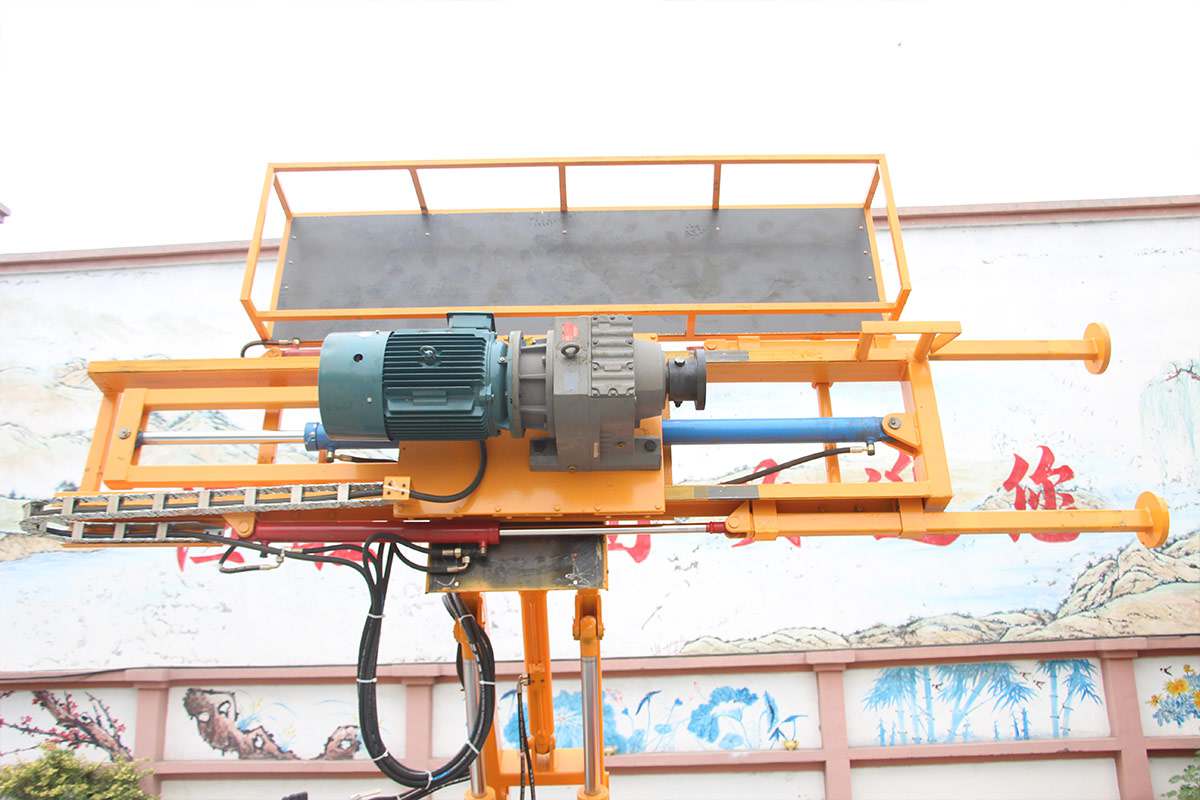

| Power Head | Electric 22kw |
| drilling angle | Can drill flat holes/can drill oblique holes/can drill vertical holes |
| Drilling diameter/depth | 65-220mm/30m |
| Chain carriage | 1.8m |
| Drill pipe propulsion and lifting power | 40 |
| Hydraulic system radiator | electric wind |
