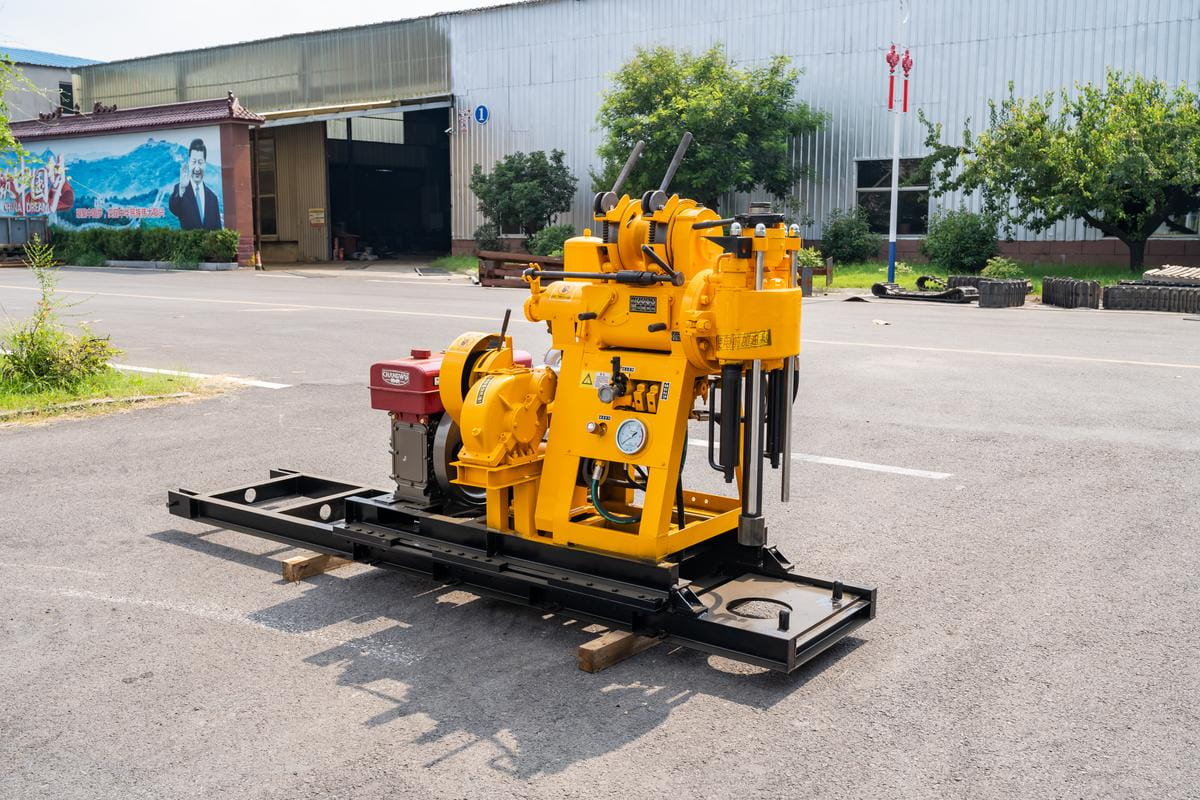

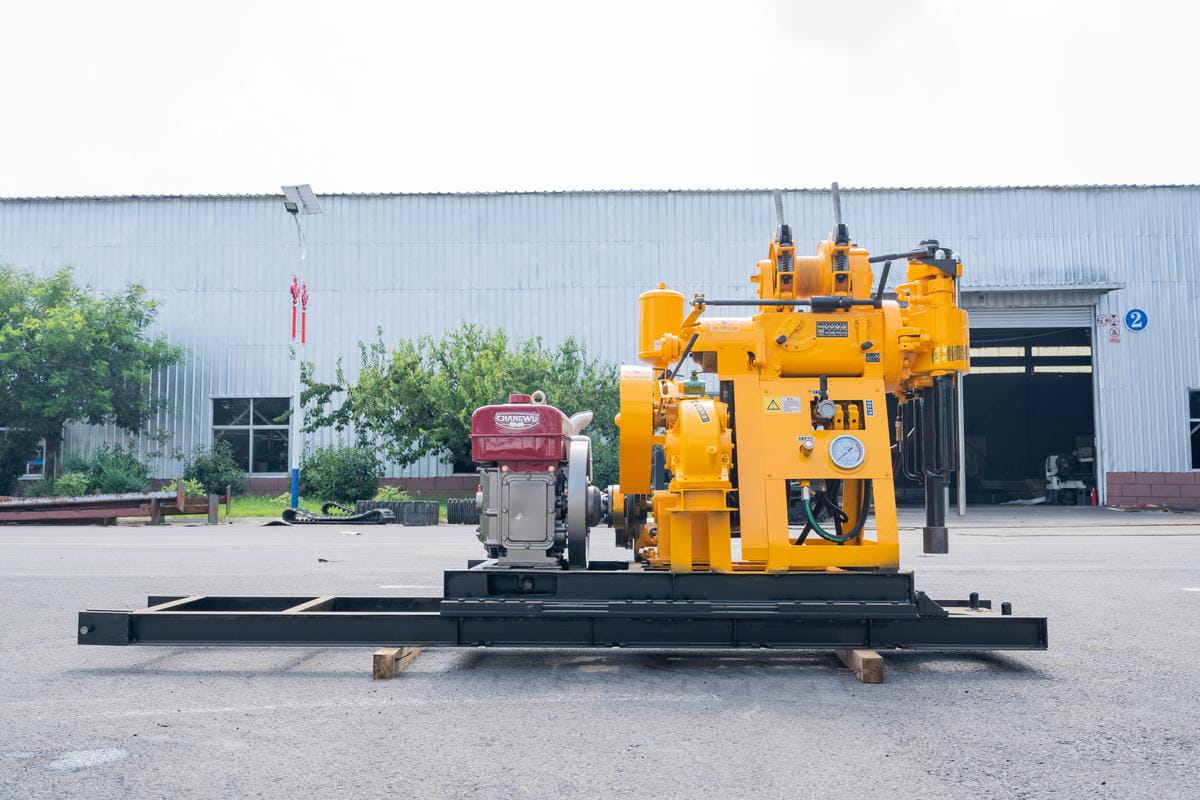

HW-160YY Hydraulic Drilling Rig

Factory Direct
Training on Arrival
One-year warranty
Drilling depth: 160m
Drilling diameter: 75-300mm
Rated Power: 13.2Kw

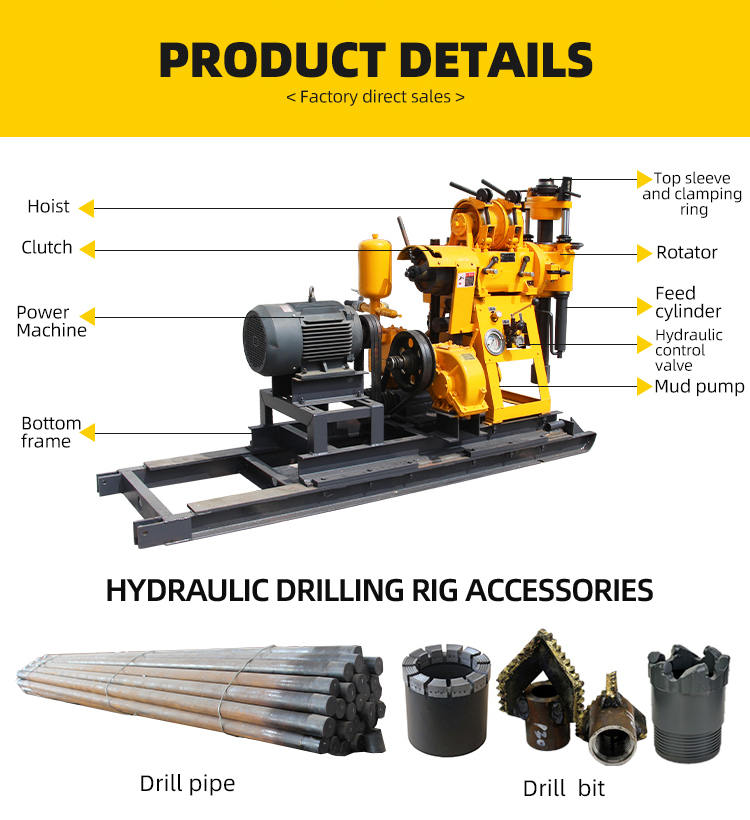

Product Detail

Remarks:

This product is continuously improved with the advancement of technology. The difference between the parameters and the actual product is subject to the actual product.

Submit the form for more parameters and quotes.


Parameter

modelHW160YY
Drilling depth160m
Opening diameter300mm
final hole diameter75mm
Drill pipe diameter42-50mm
Drilling angle90-75°

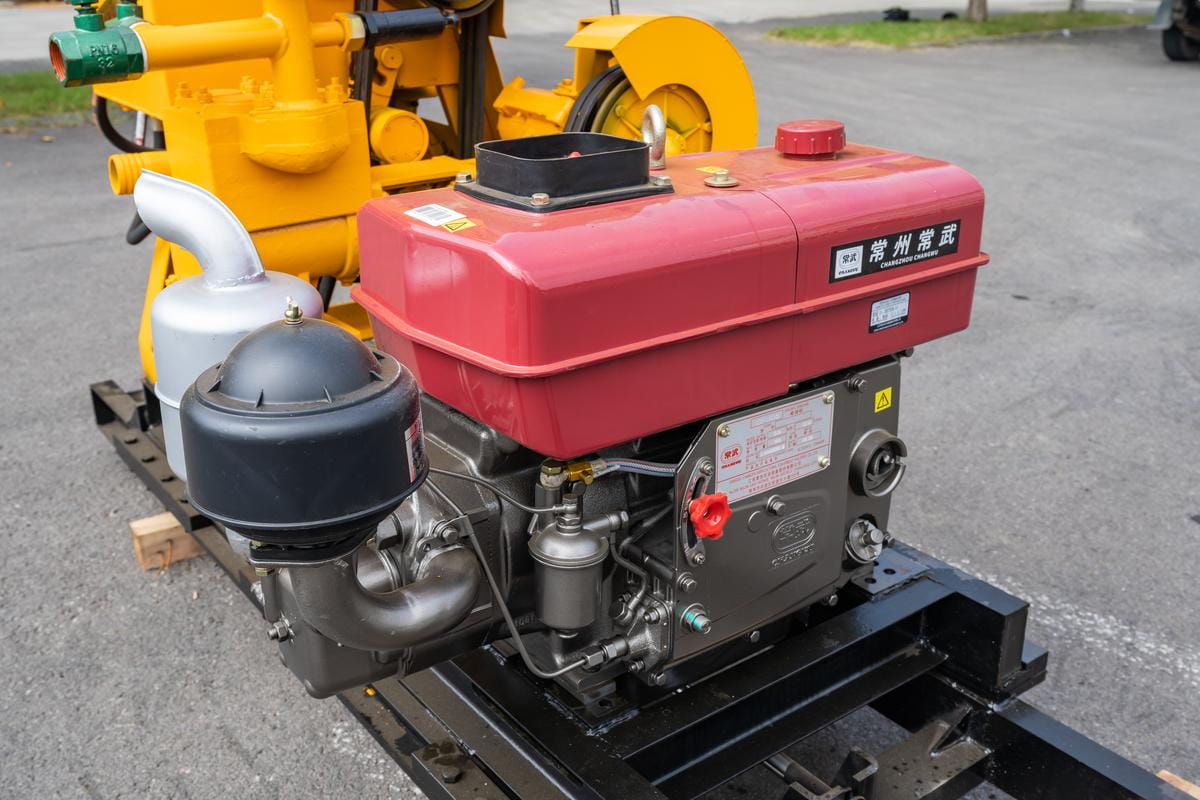

Engine power13.2kw
weight850kg
Machine size2400*800*1300mm
Vertical shaft speed142/285/570r/min
Vertical axis travel450mm
Single rope lifting force2000kg
Single rope lifting speed0.41-1.64m/s
Wire rope diameterφ9.3mm
Wire rope capacity27m
Rated load18Ton
effective height6.5m
flow95L/Min
greatest pressure1.2Mpa
Optional configuration
Walking Gantry



Main feature:

1. Although this rig is modest in size and can operate in limited locations, it is very powerful.

2. Because of its robust engineering and reliability, it is capable of drilling in difficult conditions to depths that are often beyond rigs of this size.

3. According to the needs of customers, the rig can be set to various configurations.

Hengwang Group water well drilling rig is a professional water well drilling equipment.

HW-160YY is mainly used for industrial drilling, low temperature drilling and agricultural drilling.

Wireline coring rigs can be used for geological exploration as well as SPT soil testing.


Submit the form for more parameters and quotes.
