HW-160L Hydraulic Drilling Rig

Factory Direct
Training on Arrival
One-year warranty
Drilling diameter: 75-325mm
Drilling depth: 160m
Rated Power: 13.2Kw

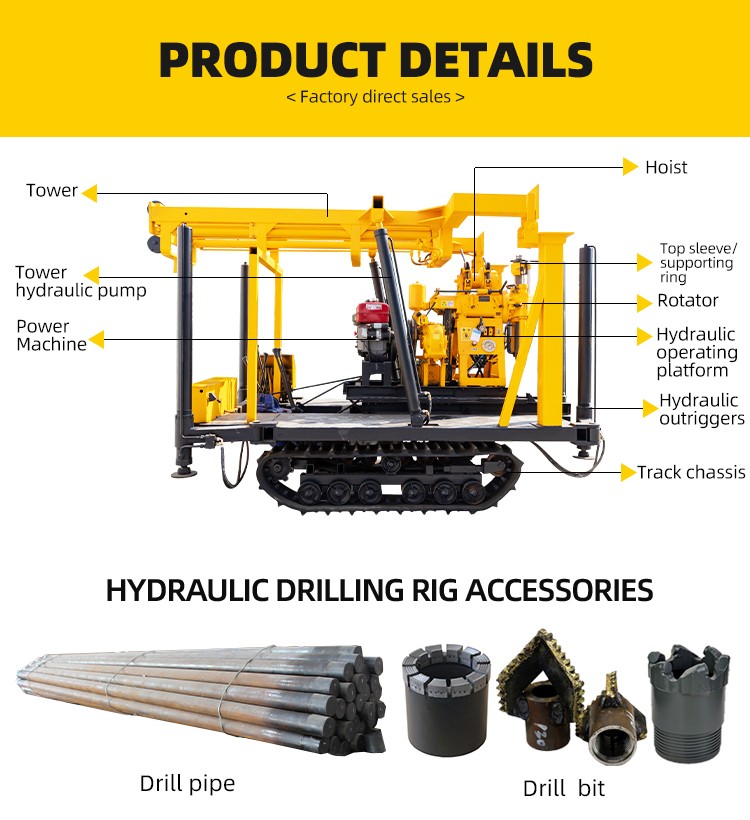

Product Detail

Product Parameters:

modelHW160L
Drilling depth160m
Opening diameter500(Soil)/220(Rock)mm
final hole diameter75mm
Drill pipe diameter42-50mm
Drilling angle90-75°
Engine power13.2kw
weight3200kg
Machine size3800*1950*2700mm
Vertical shaft speed142/285/570r/min
Vertical axis travel450mm
Single rope lifting force2000kg
Single rope lifting speed0.41-1.64m/s
Wire rope diameterφ9.3mm
Wire rope capacity27m
Rated load18Ton
effective height6.5m
flow95L/Min
greatest pressure1.2Mpa
Optional configuration
Walking Gantry



Main feature:

1. The loose layer can be used for cutting or cone drilling operations, and mud slag discharge, suitable for drilling needs under complex geological conditions;

2. Hengwang rig drilling machine is specially designed for the perfect match between the engine and the hydraulic system, which improves performance and reduces fuel consumption by 7%;

3. The fuselage design is compact and lightweight, which can work in plains and mountainous areas with less damage to vegetation.

Hengwang Group hydraulic water well drilling rig is a professional water well drilling equipment, mainly used for industrial drilling, low temperature drilling and agricultural drilling. Wireline coring rigs can be used for geological exploration as well as SPT soil testing.

Submit the form for more parameters and quotes.



emark:

This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
