Ideal for indoor construction, rooftop installations, facade maintenance, factory upgrades, and renovation projects—anywhere space is limited and precision is required.
Compact & Agile Design
With a narrow body and 360° rotating chassis, Hengwang spider cranes can easily access confined spaces such as narrow alleys, stairwells, and indoor construction sites—areas where traditional cranes cannot operate.
Lightweight & Low Ground Pressure
Engineered with a spider-like structure and rubber tracks, these cranes distribute weight evenly, minimizing ground pressure. This allows safe operation on sensitive surfaces like rooftops, wooden floors, and paved areas without causing damage.
High Lifting Performance
Despite their small size, Hengwang spider cranes offer impressive lifting capacity and outreach. Models range from 0.8 to 3+ tons, with maximum lifting heights exceeding 20 meters, ensuring excellent performance for diverse lifting tasks.
360° Continuous Rotation
The upper structure rotates 360° continuously, enabling precise load positioning and improved operational efficiency on complex job sites.
Remote Control Operation
Equipped with ergonomic remote controls, operators can manage the crane safely from the ground, enhancing visibility and safety during lifts.
Easy Transport & Setup
The crane can be folded into a compact size for easy transport in a van or small truck. Setup is quick and requires no additional rigging or large crew.
Reliable & Durable Build
Constructed with high-strength steel and quality hydraulic systems, Hengwang spider cranes are built for durability and long-term performance in demanding environments.
Cost-Effective Solution
Offers a more affordable and efficient alternative to large cranes or scaffolding, reducing labor costs and project timelines.
Compliance & Safety
Designed to meet international safety standards, featuring overload protection, emergency stop, and stable outrigger systems for secure operation.

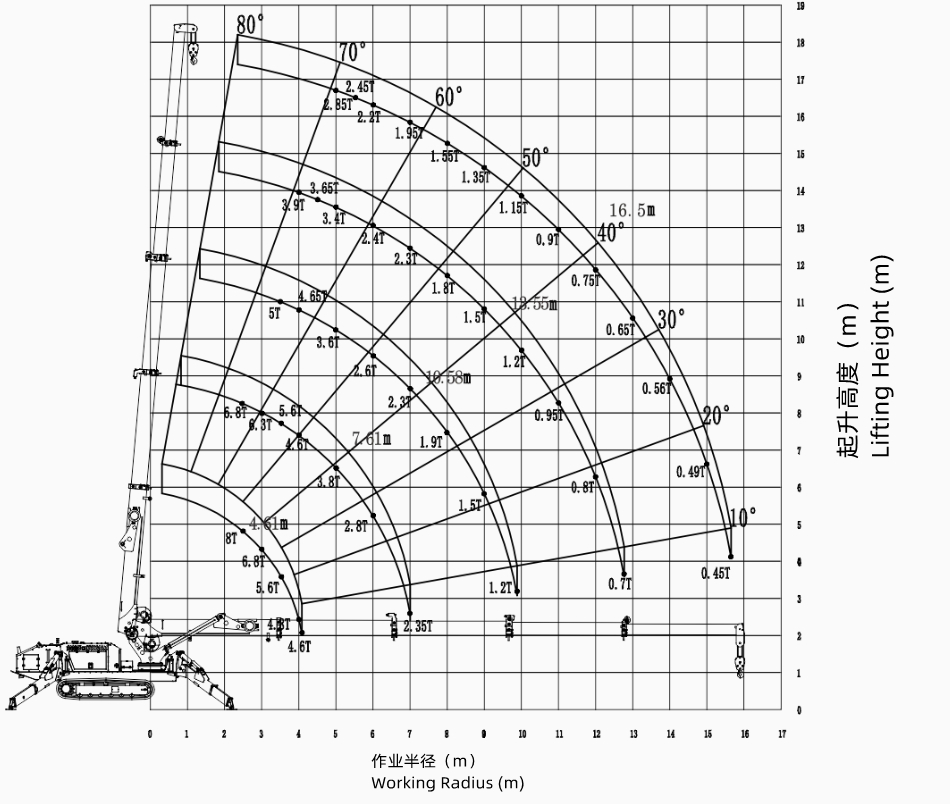

Product Parameters
| Model | HW800 |
| Specification | 8.0t |
| Dimension | L5000mm*W1600mm*H2200mm |
| Machine weight | 7000kg |
| Max working radius | 16m（0.5ton） |
| Max lifting height | 16.8m |
| Standard configuration | Proportional Valve and Proportional Remote control , Diesel engine, Electric motor, Power distribution box, Searcher hook, Storage battery, Black rubber track, EMO switch, Three color lamp, Remote control lamp, Luffing balance valve, Telescopic balance valve, Hook anti-decoupling device, Slewing brake, Winch brake, Outrigger off the ground alarm and automatic stop device, Walking/Outrigger/Boom three-mode interlock system, Extra two sets of filters |
